Product Details:
|
| Operating Temperature: | 0-50℃ | Voltage: | 220V/50Hz |
|---|---|---|---|
| Material: | Stainless Steel SK5 | Speed: | 1000rpm |
| Noise Level: | ≤ 50dB | Capacity: | 100pcs/min |
| Highlight: | Offset Printing Machine Steel Round Knife,SK5 Stainless Steel Round Knife |
||

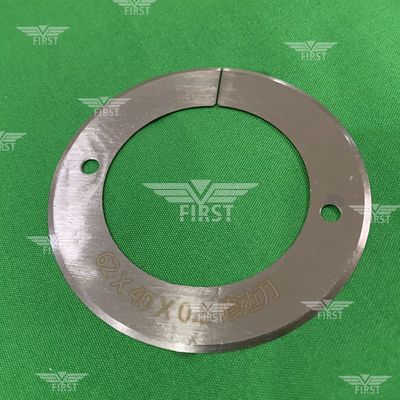

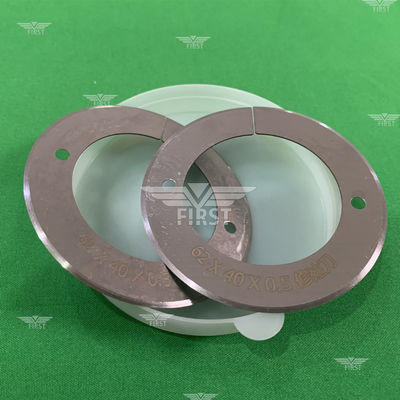

Steel Round Knife for Sthal Heidelberg Offset Printing Parts - Blade Factory Knife. Binding machine printing parts designed for optimal performance in industrial printing applications.
| Parts Name | Applicable Models | Parts Code | Description |
|---|---|---|---|
| Wash Up Blade | SM52 | G2.010.502 | Length: 605mm, 7 holes |
| Wash Up Blade | SM74/PM74 | M2.010.403 | Length: 822mm, 9 holes |
| Wash Up Blade | SM102 CD102 | 41.010.403 | Length: 1090mm, 11 holes |
| Wash Up Blade | CD74XL 75 | L2.010.403 | Length: 847mm, 9 holes |
| Wash Up Blade | GTO 46 | 42.010.180 | Length: 500mm, 5 holes |
| Wash Up Blade | GTO52 | 69.010.180 | Length: 560mm, 6 holes |
| Wash Up Blade | kord 64 | .............. | Length: 690mm*50, 12 holes |
| Wash Up Blade | KOMORI | .............. | Length: 1110*48mm |
| Wash Up Blade | Roland | .............. | Length: 1100*65*0.5mm 11 holes |
Folding Machine Spare Parts are specially designed for folding machines. Operating at 220V, these parts are crafted from high-quality High Speed Steel SK5 with standard sizing and include a one-year warranty. The machine speed can reach up to 1000rpm. Key components include Stahl brand knives, round knives for binding machines, and folder knives. With premium quality and reliable performance, these parts deliver an exceptional user experience.
Folding Machine Spare Parts Knife is widely used in binding, papermaking, printing and other industries. This folder knife is made of high-quality carbon steel SK5 and features a silver color. With a capacity of 100pcs/min and noise level of ≤50dB, it is an ideal choice for folders, blades for folders, and blade parts for binding applications.
